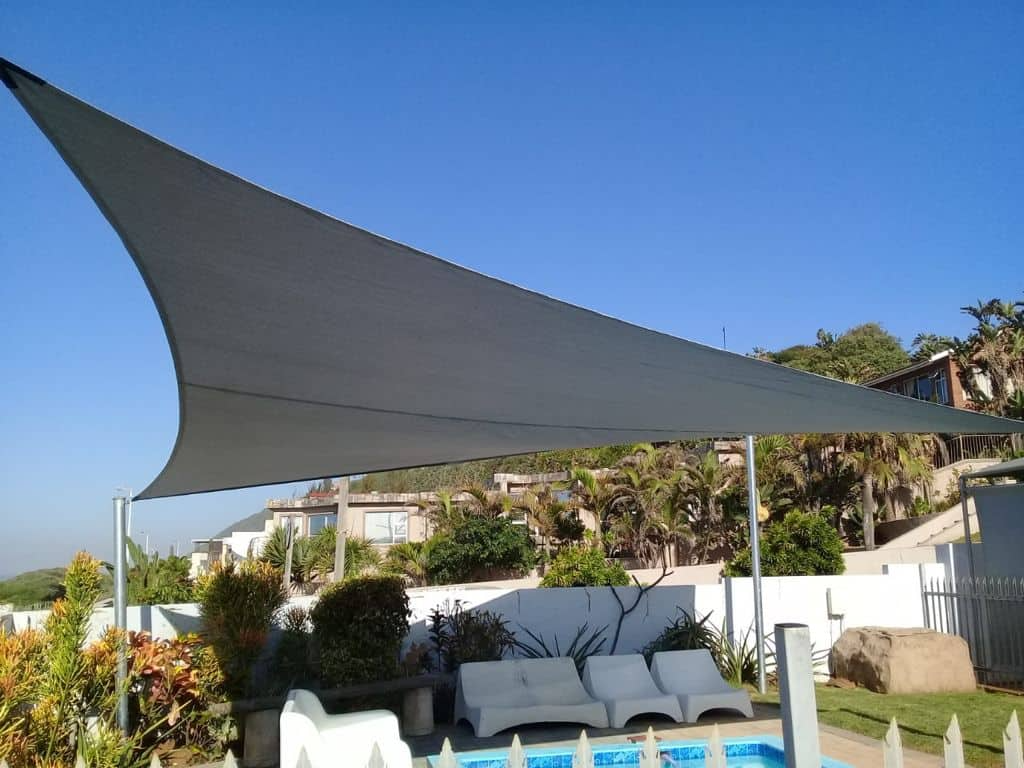

Dunet (SSGB6E) Knitted shade Cloth provides an ultimate protection against U.V Rays with maximum 90% Shade Factor under extreme weather conditions. Suitable for Fencing (Privacy Screen), Agriculture, Green Houses, Shelter at Public places.

Technical Specifications:

Product Code Dunet – Knitted Shade Cloth (SSGB6E)
Material H.D.P.E Tape/Mono
Size 3Mtr x 50Mtr
Weight(ASTM D 3776:2009) 180 Gr / Sqm
Shade Factor 90%
Tensile Strength(ASTM D 5034:2009 C.R.E Grab Test Method) Warp:513.7 N (115.5 lbf ) Weft:611.9 N(137.6 lbf )
Elongation(ASTM D 5034:2009 C.R.E Grab Test Method) Warp:49.3 N Weft:30.30 N
Tearing Strength(ASTM D 5587:2008 C.R.E Trapezoid Method) Warp:223.7 N (50.3 lbf ) Weft:196.60 N (44.2 lbf )
Bursting Strength(ASTM D 3787:2009 C.R.E Diaphram Method) 1627.9 kPa (236.1 psi)
Puncture Resistance(ASTM D 6797:2007 C.R.E Ball Bursting Method) 872.0 N (195.6 lbf )

Note:

The practical unit of lbf was expressed together with N (Newton). The conversion factor for N (Newton) from lbf is 4.44822. Test area 7.3 cm3
